by Al Rabe
Rabe Rudder
by Al Rabe
intro by Windy Urtnowski

      Not many weeks go by that someone doesn't ask me for information on setting up a "Rabe rudder" properly.  In the past, I've loaned out countless video tapes showing how I did this, so maybe it's time for a review of this topic in Stunt News.  Why not just leave the rudder offset the same amount all the time?  With a low-RPM motor or small, lightweight prop, you can do that without a severe penalty.  When we all flew Fox .35-size ships, the only "variable" was whether to use a cambered vertical stab or use rudder offset, and how effective to make it.  But time and progress brought thicker airfoils, bigger displacement motors, larger diameter props, longer tail moments, etc., and problems started to become obvious: a 'softness' on the top of the hourglass, the outside part of the square eight, and the overhead eight...especially with .60-powered ships. The 'band-aid' fixes were shorter lines and/or extra tip weight...but these 'fixes' caused their own problems in other parts of the pattern. Al Rabe is generally credited as the originator of the  'variable kickout' rudder that's so widely used now-it's almost universally called the "Rabe rudder."  A ship with a big displacement motor spinning a heavy, carbon (or even worse, multi-blade) prop is more prone to need the variable rudder kickout on outside turns.  The heavier the prop, higher the RPM, and sharper the outside turn, the more 'kickout' is needed.  Mike Rogers came up with the "ball link on the elevator edge" system shown in the drawing, which allows several adjustments to accommodate different airframe/motor/prop combinations.  This linkage is easy to install, and you can leave it off the ship until it's completely buffed out.

This linkage is shown on the Typhoon 60 drawing, so if you'd want to use it for a smaller ship, all the dimensions would be proportionally smaller.  The nominal settings shown will get you in the ballpark.  I have bench-trimmed many "Rabe rudder" set ups and like to start with linkage in the 'slow' movement hole (furthest from rudder).  I set it so movement is neutral on rudder when the  elevators are in neutral.  This is too little travel most times, but I fly the ship anyway to get a benchmark.  From there I go one turn more (shorten rod) and watch line tension at top of the hourglass and the outside part of square eight increase until its equal to "inside manoeuvre" tension.  As you shorten the rod, the rudder kicks in sooner, and as you move to a hole in horn closer to rudder, travel increases (more total rudder effect).
Many theories abound as to how and why a "Rabe rudder" works-I'll leave that explanation for the scientific-minded.  I don't worry about the science, frankly-I just know from flying that it does work.  My first .60 design, the Sweeper, goes back 30(!) years, and starting with the Sweeper, any of my .60 ships that didn't have a "Rabe rudder" required more than the optimum tip weight to counteract the tendency to turn in on certain parts of the stunt pattern.  Jim Greenaway convinced me to try one on the Red Baron, and I was shocked at how effective this trim feature was.  I was so impressed that I retrofitted all the planes in my air force, and every one of them showed a big gain in performance.  In 1996, when I was developing the 5-blade props for the Spitfire, I found the "Rabe rudder" extremely effective in counteracting the forces of a very heavy prop.  Joe Adamusko has had similar experience, as have Dave Midgley, Mike Rogers, Bob Baron, Jose Modesto, Jim Greenaway, and many other top fliers...including Al Rabe, of course.

Obviously this can be custom-tailored to your flying style.  I prefer to trim for solid line tension-it's one less thing to think about during the flight-while some like to back up during parts of the pattern or use their arm like a fishing pole to 'whip' model.  Watch the expert pilot of your choice, and you can generally see how he prefers his trim.  '96 NATS winner Bob Baron had solid line tension everywhere, especially in the wind.  Bob has a very relaxed style-he seldom whips or backs up. If you design your own ships, try for 10-15 sq. in. of movable rudder, deducting any 'counterbalance' area as not part of the measured area.  If you use more area than that, make a proportionally longer horn or move the horn back from the hinge line.  Both will reduce travel and increase leverage.  If you're retrofitting an old ship, you can usually sink a piece of tubing into the bottom of the outer elevator and repaint this small notch without anyone even knowing it's a retrofit.  I've done it many times in only a few hours.  Once you've tried a "Rabe rudder", you will probably include one in all future ships.  If you've already tried one and been unconvinced, though, maybe you just didn't have it adjusted in its usable range.  Of course, some people prefer no adjustable rudders or rudders that are adjustable but are not linked to the control system.  That's fine-there's always more than one way that can be made to work, for sure.  Even if you install and adjust a "Rabe rudder" on a ship, if it turns out that it really doesn't fit your needs, it's a simple thing to make it 'static', rather than dynamic...with the bonus of built-in, precise offset adjustment.

Over the last ten years, countless words and pages have been published on the benefits of .40-size motors vs. .60s.  It was an era of everyone trying to prove their system "best", and in many ways all the arguing had a negative impact on the hobby.  Time has a way of evolving the breed, and I suspect that with so many fine .60s available now, that displacement size will dominate.  It's been a long time coming, but more and more fliers seem to have arrived at the same conclusion, including World champs, NATS champs, local contest winners, and sport fliers. There is room in the hobby for everyone-including those who prefer .60s-and so the "Rabe rudder" will become an even more common trim feature.  (By the way, it can definitely improve the handling of a .40-powered ship!)   As more and more pilots learn to exploit its potential, feedback from other pilots sharing their experiences will benefit all. If you'd like a more solid feel to your setup,
this is one modification I think is really worth trying.

Windy Urtnowski

First Photo.

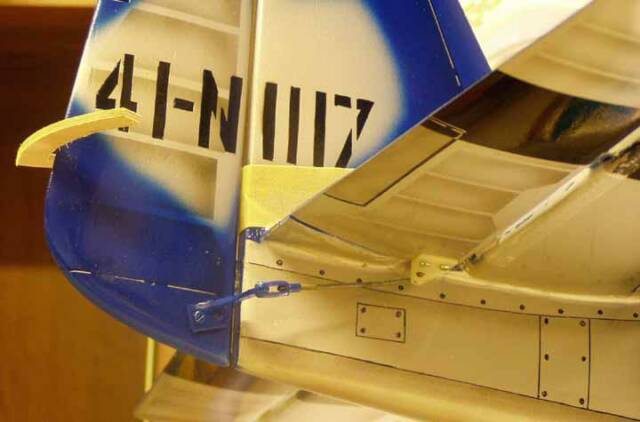

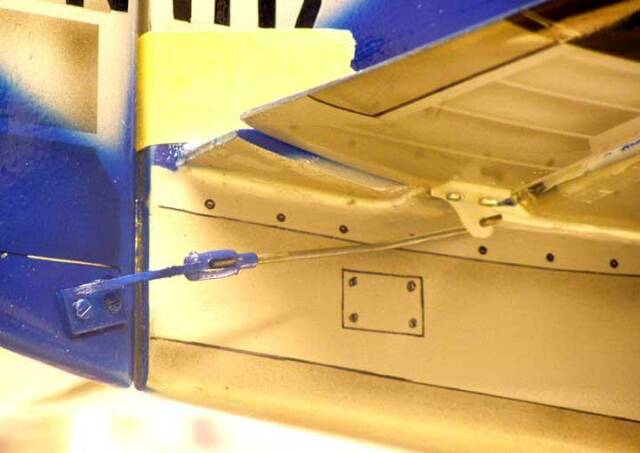

This simply shows a typical installation of the movable rudder on Snaggletooth. The point here is that the elevator end of the pushrod is below and about 45 degrees behind the elevator hinge line. It is simply a cut off and drilled plastic horn. It is a very simple device which clearly helps some stunt ships fly better.

Second Photo.

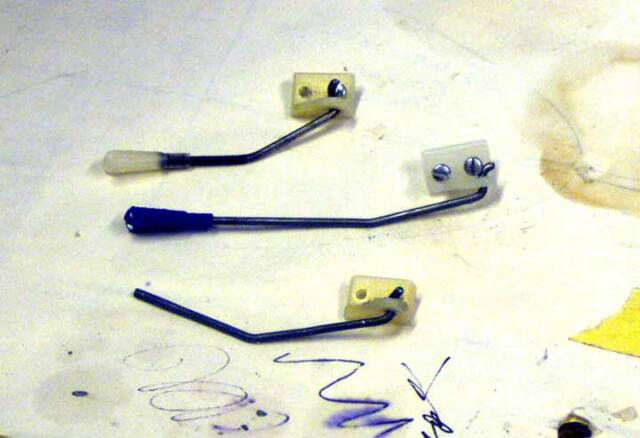

This photo shows several elevator end horns and their pushrods. The middle one is Sanggletooth's first.

Third Photo.

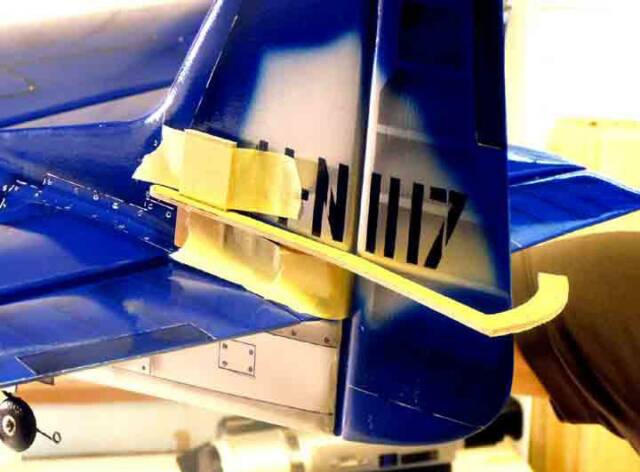

This photo shows a template custom made for Snaggletooth, for visualizing and adjusting its rudder movement. There was a similar template published on the Mustunt plans and a photo of a template in the Stunt News article. The photos of my Snaggletooth template here demonstrate my belief in the use of a similar template for systematic trimming adjustments. Without systematic adjustments, satisfactory operation of the rudder is a matter of luck. If the movable rudder doesn't meet expectations, one can always claim the thing obviously doesn't work.

Fourth Photo.

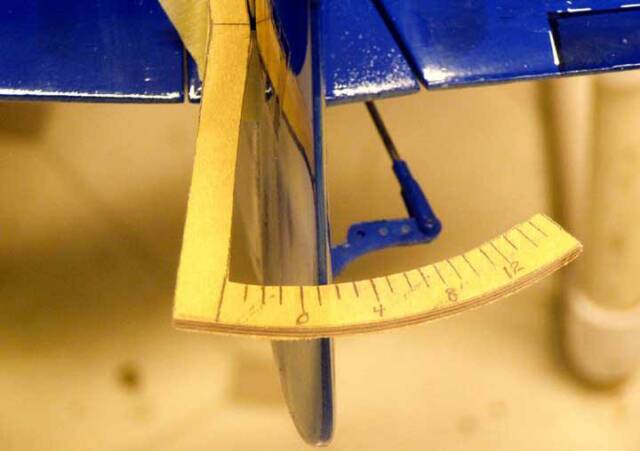

This photo shows my best guess at a good setting and the adjustments I used for the first flight. "0" on the template is zero offset of the rudder when the elevators are at neutral. Each mark is 1/8", but, to simplify explanation, I'll call each mark a "unit". In this case I set the rudder to be 1 1/2 unit offset with the elevators at neutral. Why? I simply like a bit of rudder offset..

Fifth Photo.

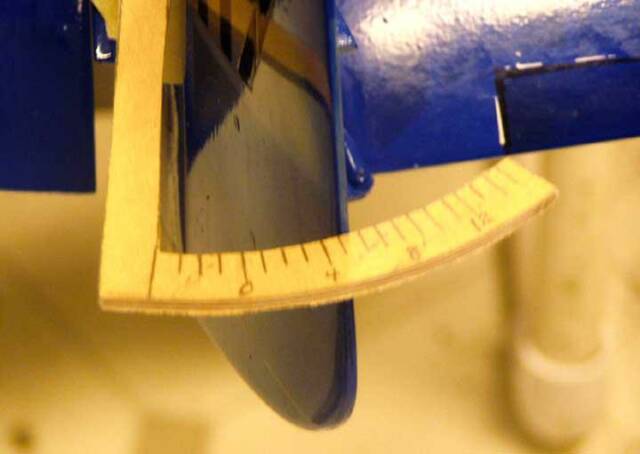

This photo shows the rudder, on full "up", has moved to minus 1/2 unit, inboard, or left two units total from the neutral elevator position.

Sixth Photo.
This photo shows the rudder position with the elevators full "down". In this photo the rudder is at 5 1/2 units. It has moved outboard, or right, four units from its elevator neutral position. That is a ratio of two to one for outboard versus inboard movement from elevator neutral. I typically use a ratio of three to one. The ratio is dependent on the location of the horn "pickup" at the elevator end of the pushrod. In any case, it is much better to use too little movement as opposed to too much. In the case of Snaggletooth, There is more rudder movement than I'd recommend. The reason being that I was running a very large 14 1/2" prop and anticipated much more than normal gyroscopic precession. This would require more correcting rudder movement than would be typical. A typical rudder initial setting for most stunt ships would be to move one unit (1/8") inboard of elevator neutral position and three units outboard of the elevator neutral position for a typical three to one ratio of relatively small movements.

On its first flights, Snaggletooth had a bit of wobble in outside corners with these settings, otherwise it seemed OK. I figured it needed more right rudder on "down". I moved the pushrod in one hole on the rudder horn to make the rudder more sensitive. It would move more on both "up" and "down". The next flights proved the outside corners smooth now, with the rudder on "down" at eight units. I was also beginning to pick up a bit of slack on the first loop of the cloverleaf, an inside loop. I tried another hole inboard on the rudder horn and found no improvement in the outsides and a definite loss of tension in that cloverleaf first loop. The use of rudder movement inboard of rudder neutral may be appropriate and is theoretically correct to compensate for the outward yaw on inside, nose up, pitching maneuvers. It just happens that Snaggletooth doesn't like it. Theoretical correctness or no, practical trimming requires that observed deficiencies be addressed.
One possible solution to the problem would be to simply return the pushrod to the outside hole on the rudder horn and crank in more offset which would give less inboard rudder position on "up" and more outboard rudder position on "down". This would have certainly given an improvement in both inside and outside corners, but would result in more offset with elevator neutral than I wanted.

Another possibility would be to change the ratio of inboard movement to outboard movement so that the rudder would move less toward the inside and more toward the outside. This is accomplished by moving the elevator end of the rudder pushrod farther from the hinge line. If this is done to an extreme, the geometry might even cause a bit of outboard movement on "up" in addition to more outboard, or right, rudder on "down". I don't recommend this degree of asymmetry and have never had to use it in the past to obtain optimum trim. Snaggletooth, however, doesn't like any inboard movement of the rudder from the neutral rudder position on "up". It tends to weaken that first cloverleaf loop. Everywhere else is OK and I can "whip" that entry, but it is better to trim rather than to rely on "whipping".

Seventh Photo.
This shows a rather extreme position of the elevator end of the rudder pushrod. The pickup has been moved about 1/4" aft, increasing the angle downward and back from the elevator hinge line to about 60 degrees. I don't recommend using this much asymmetry. It has never been necessary in the past. AND, I haven't flown it yet with this setting, which may prove to have too much asymmetry. I'll fly it and make further adjustments as necessary. I think that starting off with this much asymmetry a poor choice, and, you'll notice, I didn't.

Eigth Photo.

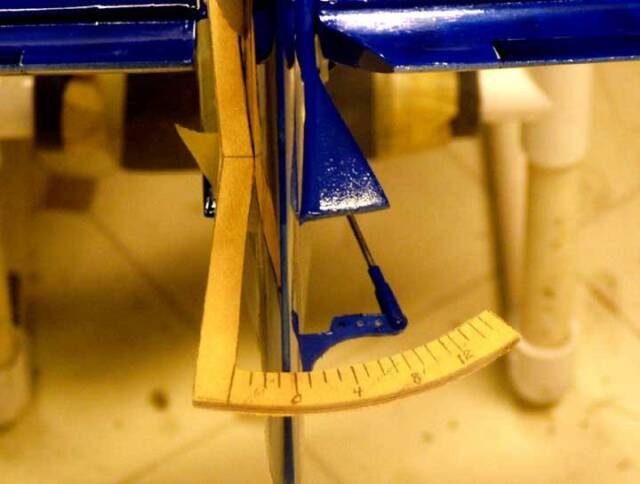

This photo shows the rudder offset with the elevators neutral is still about 1 1/2 unit. this is the same as the initial installation.

Ninth Photo.

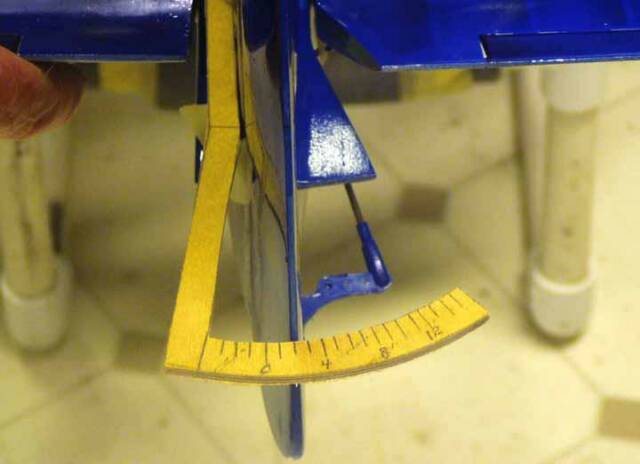

Check this out. the rudder started the move slightly inboard as the elevators moved "up" and then moved slightly, about 1/2 unit out. This gives little or no position change of the rudder on "up".

Tenth Photo.

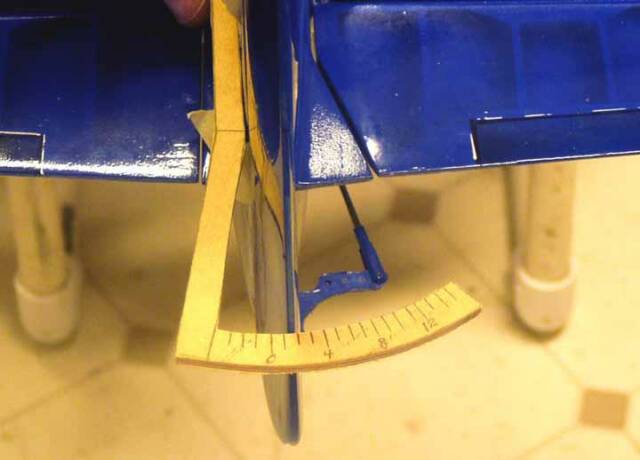

This final photo shows the rudder moving to about eight units when the elevators are "down". From trimming trials so far, this should be approximately the desired position of the rudder on "down". The increase in asymmetry has had this net effect. The overall rudder offset is the same as I started with. The right rudder position on full "down" is about where I liked it when I tried more sensitivity. The left rudder movement on "up" has effectively been eliminated. This combination should give me that smooth, wobble free, and solid outsides, and elimination of any possible harm to the cloverleaf first loop from inboard movement of the rudder.

It should be noted that there are three separate adjustments possible with this simple device.

Overall rudder offset, rudder movement inboard on "up", and rudder movement outboard on "down" are individually adjustable without interfering with preferred adjustments of the other two.

In the example above, I managed to reduce Inboard movement and increase outboard movement without changing the base rudder offset. Optimum adjustment of the movable rudder requires a thoughtful understanding of its capability and a template. Movable rudders added to airplanes without adjustment aren't likely to perform well.

In conclusion:

Rudder offset is simply adjusted by the length of the pushrod. With all of the other possible adjustments this is just too simple. Base ruder offset should be whatever you would use if you built the airplane without an adjustable rudder.

Rudder sensitivity, or total movement from one extreme to the other, is controlled by the holes on the rudder horn and, to a degree, by the "pickup" hole on the elevator horn. I try to keep the elevator "pickup" hole no farther from the bottom of the elevator than shown in the photos above and make sensitivity adjustments with the rudder horn. If the outside hole on the rudder horn is still too sensitive, make a new elevator horn with the "pickup" closer to the elevator surface.

Rudder movement asymmetry is controlled by the fore and aft location of the "pickup" hole on the elevator horn. If the "pickup" is directly under the hinge line, the rudder will move equal amounts left and right from neutral offset. This is the theoretically correct location. With sensitivity adjustments, the rudder can be adjusted to remove all of the prop gyroscopic precession from the propeller which precesses the same on both inside and outside maneuvers, but in opposite directions. This was the original intent, and the way the first movable rudders were installed. In practice, it turned out that it was better to overcompensate for the inward yaw on outsides, to add a bit of outward yaw to improve line tension. In practice, it also became apparent that it was best not to remove all of the naturally occurring outward yaw from inside corners. By moving the "pickup" back from the hinge line, I was able to accommodate both of these actions by using more right rudder movement on outsides and less left rudder movement on insides. For most airplanes, this would be about 45 degrees behind the hinge line. I wouldn't use more asymmetry until I was very sure it is necessary. Remember, more rudder offset is another way to get more apparent asymmetry without changing the "pickup".

Now you know everything about how movable rudders work. The rest you learn by observing how the airplane flies in various maneuvers. With practice, you will get the hang of actually changing smoothness and line tension in various maneuvers and getting the best balance throughout the pattern. Trim technique was discussed in the Stunt News article. It might seem desirable to make the airplane yaw out strongly in all maneuvers but, again, that doesn't work very well. Excessive rudder induced yaw will give you more drag, and the drag can kill you in the wind. A balanced and moderate approach to trimming works best. Shoot for enough trim without overdoing it. The airplane should appear smooth and wobble free in corners and retain necessary minimum;m drag penetration in the verticals. Too much asymmetry is just as bad as too much movement. A light touch works best.
